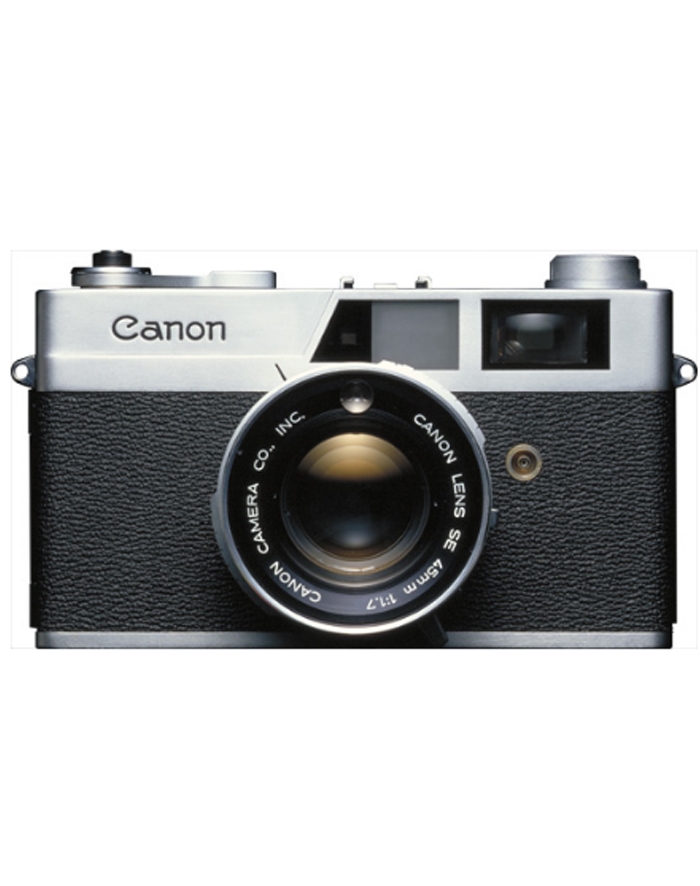

Canon Canonet S år1964
Type 35mm Lens Shutter rangerfinder camera with shutter speed-priority EE
Picture Size 24 x 36 mm
Normal Lens Canon SE 45mm f/1.7 (6 elements in 5 groups)
Shutter Copal SV; B, 1 to 1/500 sec. Built-in self-timer. Flash sync enabled with M-X switchable German socket.
Viewfinder Coincidence rangefinder integrated with reversed Galilean viewfinder. Automatic parallax correction with projected frames and marked finder. 0.7x magnification. Viewfinder bottom features aperture scale (f/1.7 – f/16) and match needle correct exposure window/exposure warning indicator.
Exposure Meter
and EE CdS comb-controlled shutter speed-priority EE. Metering range of EV 2.5 – 19 (at ISO 100). Film speed range of ISO 25 – 800. Manual exposure enabled by disabling AUTO (EE).
Power Source One 1.3 V MP mercury cell
Film Loading &
Advance After opening camera back, insertion onto spool. Advances with camera-top lever. (120° single stroke)
Frame Counter Counts up. Resets automatically when camera back is opened.
Film Rewind Camera-top crank
Dimensions &
Weight 140 x 78 x 37 mm, 750 g
